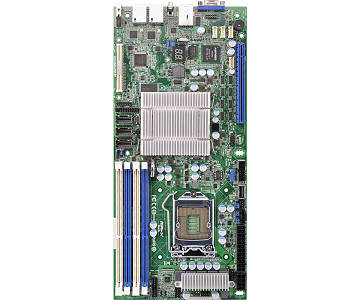

E3C224D4HM-8R

  1. Half-width, 13''x5.96''
  2. Supports New 4th and 5th Generation Intel® XeonE3-1200 v3/v4/ Core™ i3/Pentium®/Celeron® Processors (Socket 1150)
  3. 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
  4. 1 PCIe3.0 x16
  5. 4 x SATA3 from mini SAS connector by Intel® C224 support RAID 0,1,5,10
  6. 8 x SAS2 from 2xmini SAS connector by LSI2308
  7. 2 x Intel® i210, support Dual GLAN
  8. ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
  9. 3 x USB 3.0 ports (2 via header + 1 rear)
  10. 3 x USB 2.0 ports (2 via header + 1 Type A)
