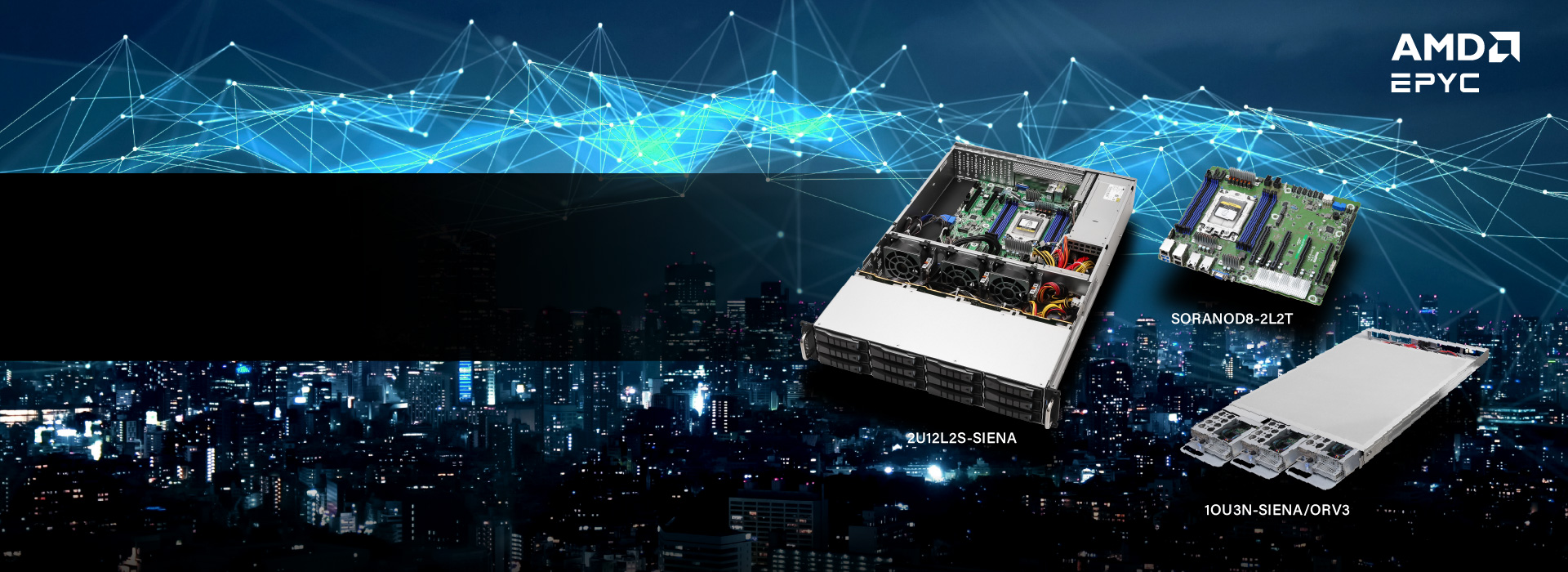

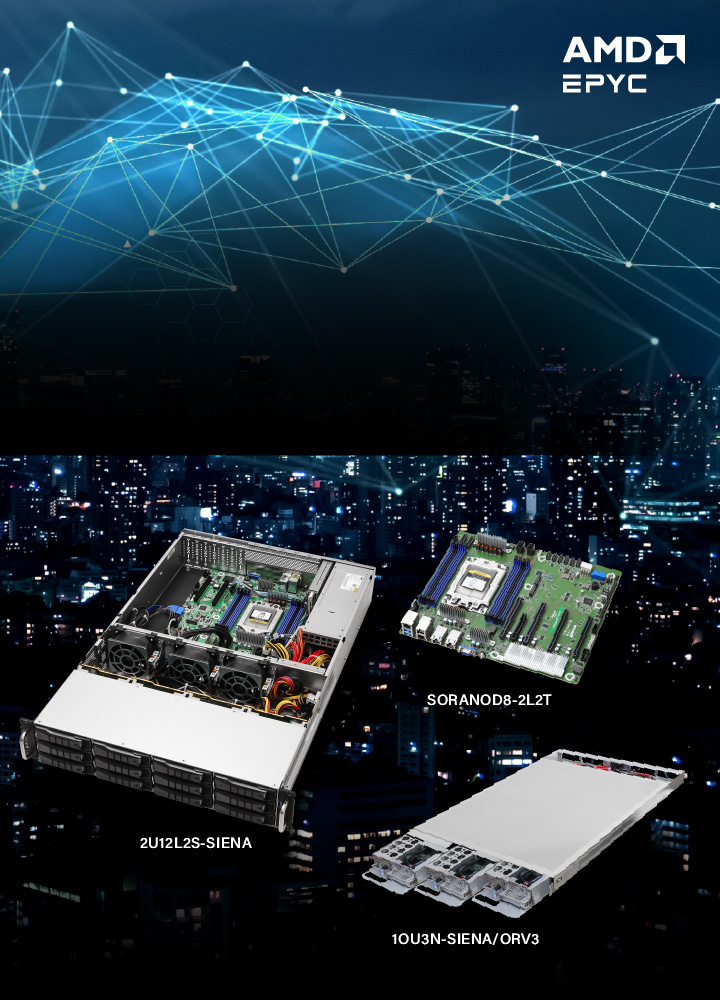

ASRock Rack launches servers powered by AMD EPYC™ 8005 and 8004 series processors ASRock Rack launches servers powered by AMD EPYC™ 8005 and 8004 series processors

Delivering Leadership Performance per Watt for Telco, Edge, and Cloud Storage

Powered by AMD EPYC™ 8005 Processor

AMD EPYC™ 8005 Processor: Big Performance. Low Power. Small Footprint.

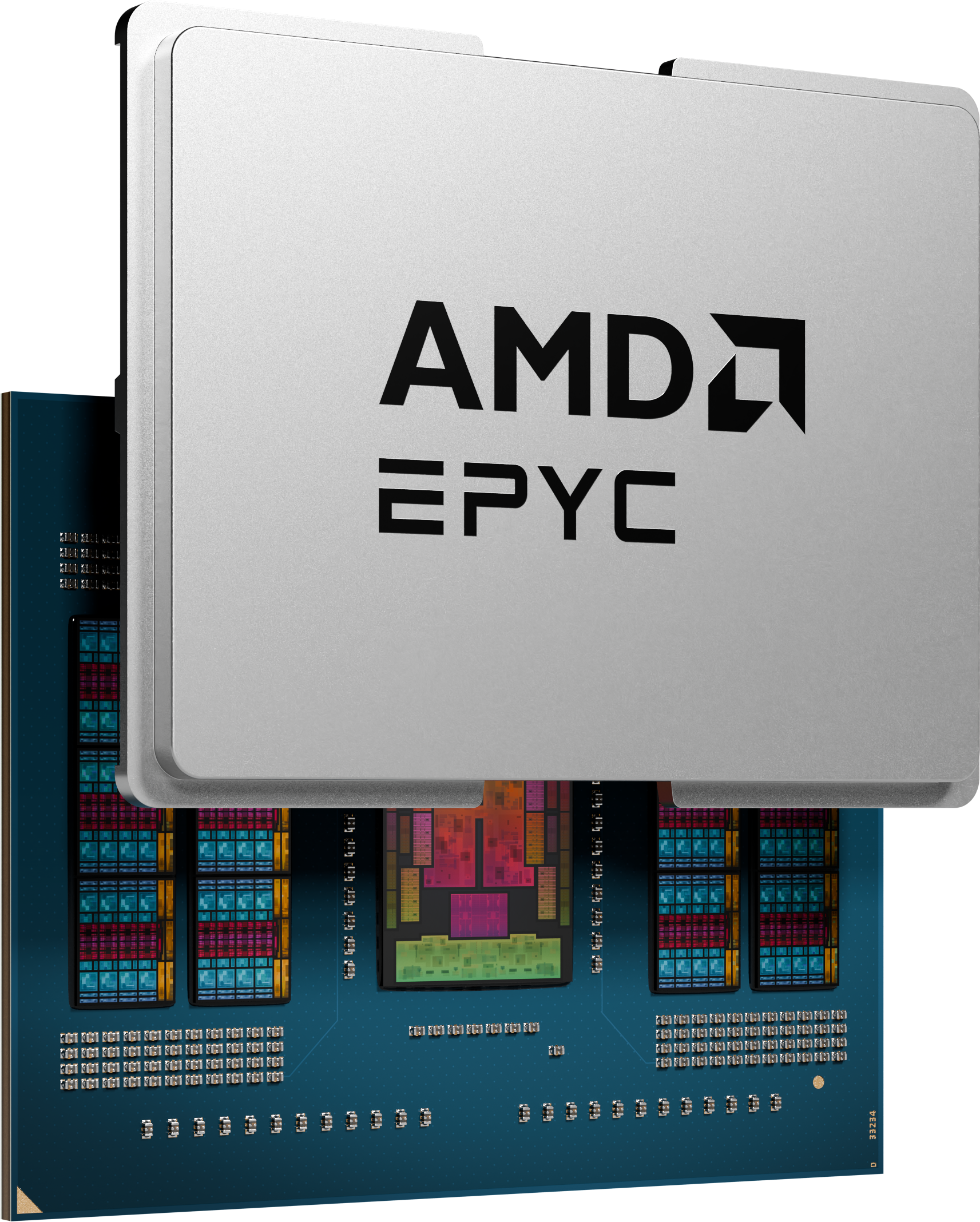

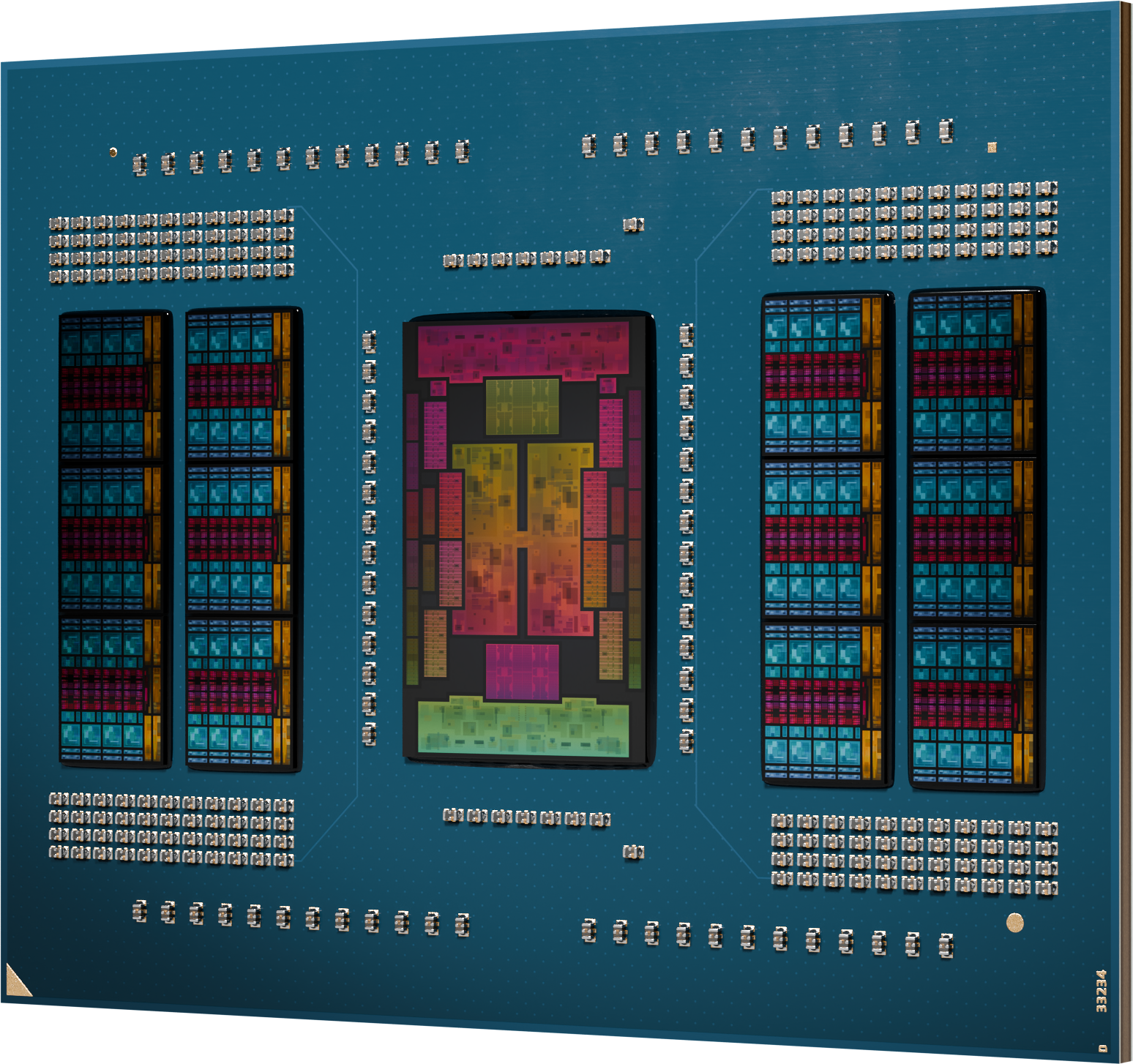

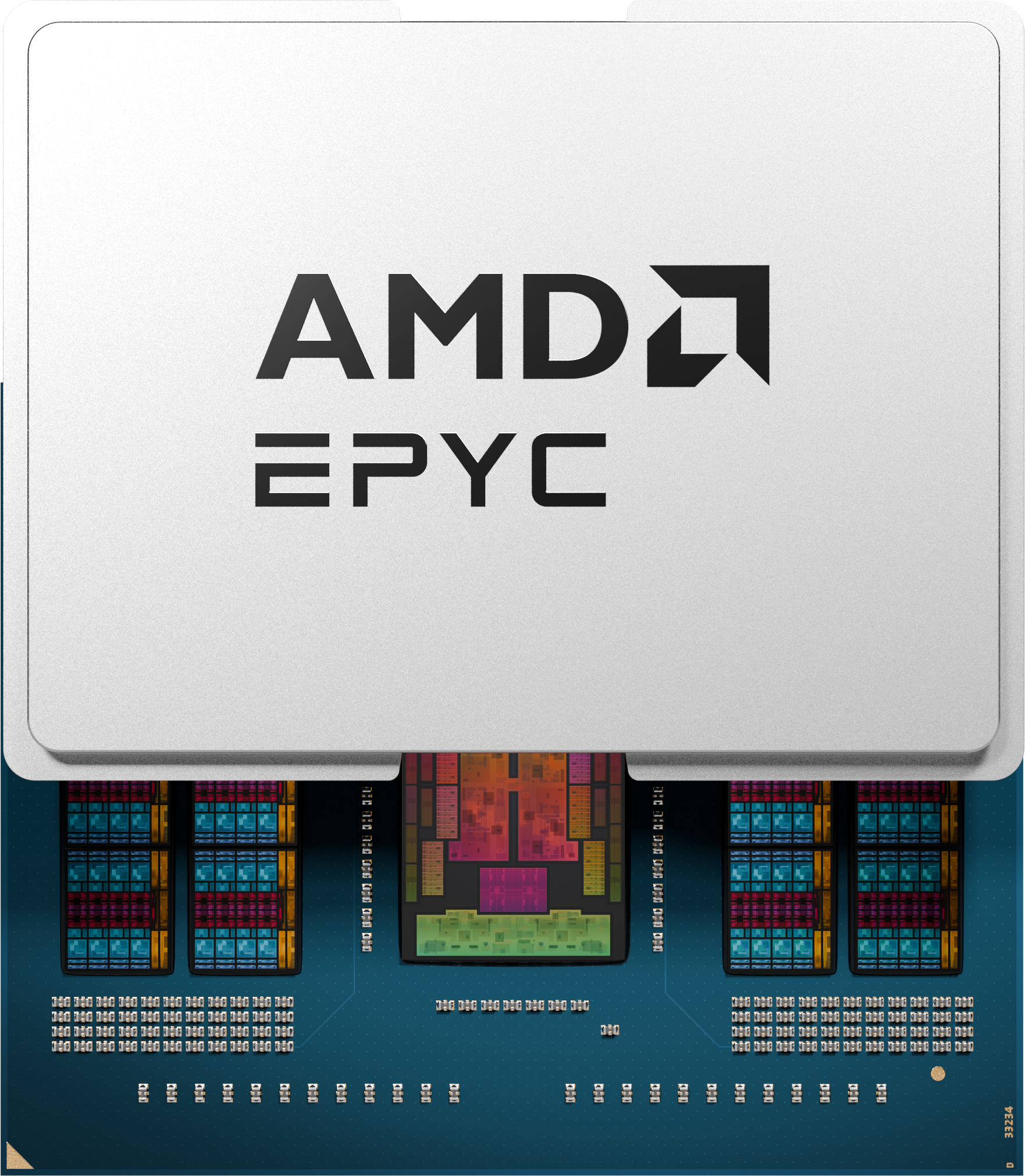

The AMD EPYC™ 8005 server CPU is a single-socket processor built specifically for space- and power-constrained environments. Running on the "Zen 5" architecture, it delivers scalable configurations from 8 to 84 cores within a tight 70W to 225W thermal design power (TDP) envelope. It provides leadership performance per watt per dollar for low-power, small footprint applications in telco, edge, and cloud storage deployments without overwhelming space or power limits.

Right-Sized Performance and Optimized TCO

Drive higher compute density while lowering your total cost of ownership. The AMD EPYC™ 8005 server CPU offers right-sized, single-socket performance that significantly reduces power consumption for demanding edge workloads. By maximizing power efficiency and offering wide thermal ranges, operators can consolidate hardware and deploy cost-effective, air-cooled servers that do not require massive power and cooling infrastructure.

x86 Modernization and High I/O Bandwidth

Standard x86 compatibility ensures you can modernize your edge and vRAN infrastructure immediately, minimizing migration risk by eliminating the need to rewrite or recompile existing software code. To support high-capacity workloads, the platform delivers up to 96 lanes of PCIe® Gen 5 and CXL® 2.0 connectivity, providing the immense data throughput required for dense cloud storage devices and fast network processing.

Meet the Latest ASRock Rack Servers
Supporting AMD EPYC™ 8005 and 8004 Processors

SORANOD8-2L2T
  • ATX-like (12" x 10")
  • Single Socket SP6 (LGA 4844); supports AMD EPYC™ 8005/8004 processors
  • 8 DDR5 288-pin DIMM slots, supports RDIMM, RDIMM-3DS
  • 1 PCIe5.0 / CXL2.0 x16 or 16 SATA 6Gb/s, 2 PCIe5.0 / CXL2.0 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
  • 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • Remote Management (IPMI)
SIENAD8-2L2T
  • ATX (12" x 9.6")
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 8 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 3 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8
  • 2 MCIO (PCIe5.0 x8)
  • 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • Remote Management (IPMI)
SIENAD10HM3
  • Half-width (6.6" x 17")
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 10 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 2 Slim cool edge (PCIe5.0 x16)
  • 1 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s)
  • 1 OCuLink (PCIe3.0 x4)
  • 1 OCuLink (2 SATA 6G/b) by ASM1061R
  • 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s)
  • Up to 10 SATA 6Gb/s
  • 1 OCP NIC 3.0 (PCIe5.0 x16), 2 OCP NIC 3.0 (PCIe5.0 / CXL1.1 x16)
  • Remote Management (IPMI)
SIENAD8UD-2L2Q
  • Supports ATX PSU and 12V DC-in
  • Deep Micro-ATX (9.6" x 10.5")
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 8 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 / CXL1.1 x8
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
  • 1 OCuLink (PCIe3.0 x4)
  • 2 M.2 (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel i210
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • Remote Management (IPMI)
SIENAD8UD2-2Q
  • Supports ATX PSU and 12V DC-in
  • Deep Micro-ATX (9.6" x 10.5")
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 8 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 / CXL1.1 x8
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
  • 1 OCuLink (PCIe3.0 x4)
  • 2 M.2 (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57502
  • Remote Management (IPMI)
SIENAD8UD3
  • Supports ATX PSU and 12V DC-in
  • Deep Micro-ATX (9.6" x 10.5")
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 8 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL1.1 x16
  • 4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
  • 1 OCuLink (PCIe3.0 x4)
  • 2 M.2 (PCIe5.0 x4)
  • Up to 32 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)
3U16L2S-SIENA
  • 3U Rackmount with 1+1, 80-PLUS Platinum/Titanium, 800W CRPS
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 8 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 16 Hot-swap 3.5" SATA drive bays
  • 2 Hot-swap 2.5" SATA drive bays
  • 2 FHHL PCIe5.0 x16
  • 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)
2U12L2S-SIENA
  • 2U Rackmount with 1+1, 80-PLUS Platinum/Titanium, 800W CRPS
  • Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8005/8004 series processors
  • 8 DDR5 288-pin DIMM slots; supports RDIMM, RDIMM-3DS
  • 12 Hot-swap 3.5" SATA drive bays
  • 2 Hot-swap 2.5" SATA drive bays, supports 7mm height
  • 2 HHHL PCIe5.0 x16
  • 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)
2OU3N-SIENA
  • 2OU chassis with three-bay shelf for ORv3, 2000W from 50V busbar
  • Single Socket SP6 (LGA 4844) per sled, supports AMD EPYC™ 8005/8004 series processors
  • 10 DDR5 288-pin DIMM slots per sled, supports RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays per sled
  • 1 HHHL PCIe5.0 x16 per sled
  • 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s) per sled
  • 1 OCP NIC 3.0 (PCIe5.0 x16) per sled
  • Remote management (IPMI) per sled
1OU3N-SIENA/ORV3
  • 1OU chassis with three-bay shelf for ORv3, 1600W from 50V busbar
  • Single Socket SP6 (LGA 4844) per sled, supports AMD EPYC™ 8005/8004 series processors
  • 10 DDR5 288-pin DIMM slots per sled, supports RDIMM, RDIMM-3DS
  • 1 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bay per sled
  • 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s) per sled
  • 1 OCP NIC 3.0 (PCIe5.0 x16) per sled
  • Remote management (IPMI) per sled
