OPTIMIZED PERFORMANCE FOR THE MOST DEMANDING AI-ENABLED DATA CENTER WORKLOADS

with AMD EPYC™ 9005 Series Processors

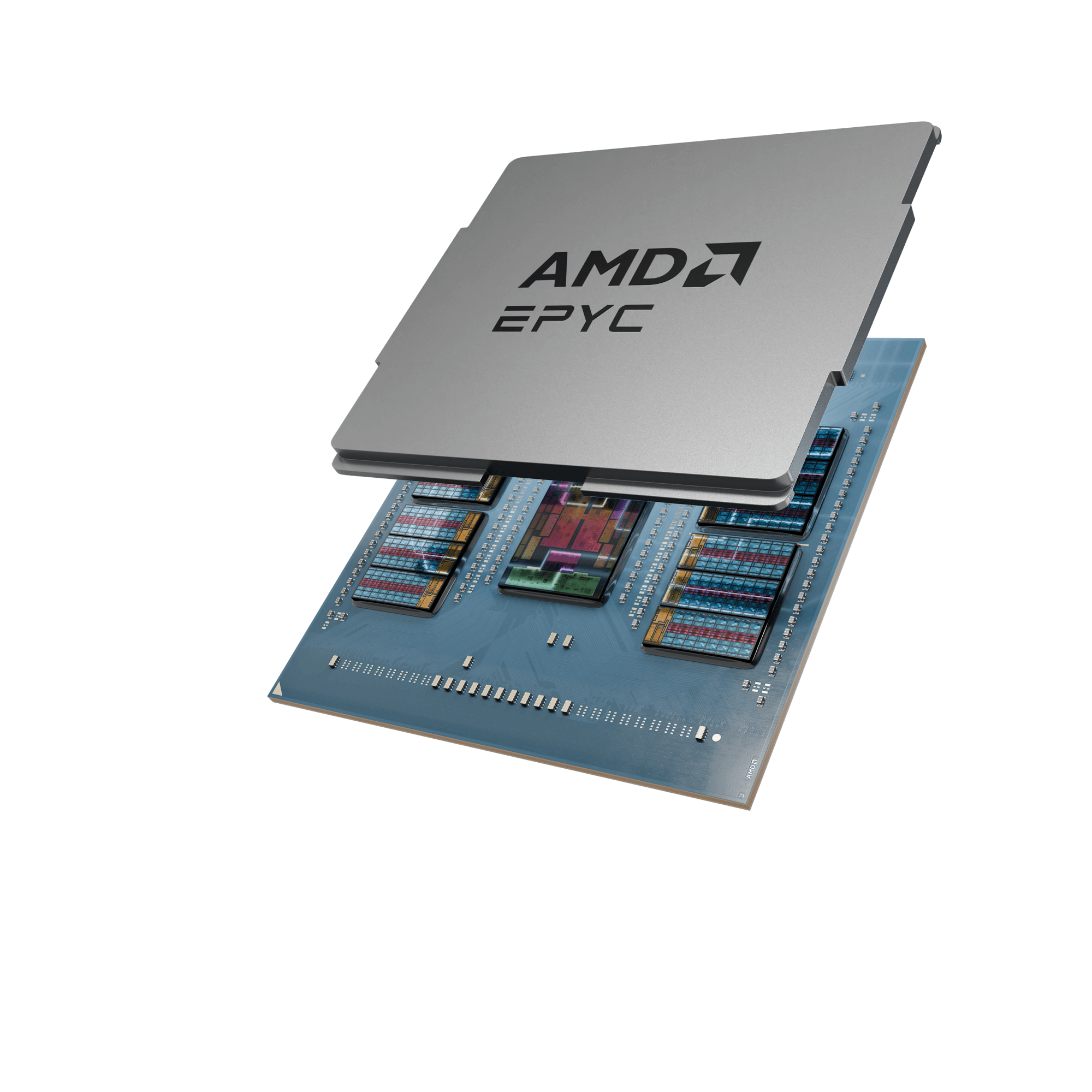

WHAT ARE AMD EPYC™ 9005 PROCESSORS?

Many of the advancements in the EPYC™ 9005 processor family are enabled by the breakthrough high performance, highly efficient "Zen5" processor core architecture manufactured on cutting-edge TSMC 3nm process.

AMD "Zen" cores and EPYC chiplet-based architecture allows rapid innovation, with EPYC™ 9005 systems offering even more cores (up to 192 cores, 384 threads per CPU), new higher frequency support (up to 5 GHz) and faster DRAM support (up to 6000 MHz), allowing AMD EPYC 9005-based servers to support almost any business need with little or no software modifications.

AMD_EPYC_9005_Z5C_Logo

Meet the Latest ASRock Rack Servers Supporting AMD EPYC™ 9005 Processors

GENOAD8UD-2T/X550

  • 10.4" x 10.5"
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 PCIe5.0 / CXL2.0 x16
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)
  • Supports 2 M.2 (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)
  • Support ATX PSU or 12V DC-IN
BERGAMOD8-2L2T

BERGAMOD8-2L2T

  • CEB (12" x 10.5")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL2.0 x16, 2 PCIe5.0 x16, 2 PCIe5.0 / CXL2.0 x8
  • 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8 )
  • Supports 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s)
  • Up to 10 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)

GENOAD8X-2T/BCM

  • EEB (12.63" x 13")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 PCIe5.0 / CXL2.0 x16*, 3 PCIe5.0 x16, 1 PCIe5.0 x8**
  • 2 MCIO** (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO* (PCIe5.0 x4)
  • Supports 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2* (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • Remote Management (IPMI)

GENOAD8QM3-2T/BCM

  • CEB (12" x 11")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL2.0 x16
  • 1 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe5.0 / CXL2.0 x4 or SATA 6Gb/s)
  • Up to 26 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

GENOAD8HM3

  • Half-width (6.6" x 17")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 x16, 1 PCIe5.0 x8
  • 2 MCIO* (PCIe5.0 x8 or 8 SATA 6Gb/s), 6 MCIO (PCIe5.0 x8)
  • 1 OCuLink (2 SATA 6G/b) by ASM1061R
  • 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
  • Up to 20 SATA 6Gb/s
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

GENOAD12M3-2Q

  • 9.6" x 13.39"
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL2.0 x16
  • 6 MCIO (PCIe5.0 x8), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
  • Supports 2 M.2 (PCIe5.0 / CXL2.0 x4 or 4 SATA 6Gb/s)
  • Up to 24 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
  • Remote Management (IPMI)

GENOAD24QM3-2L2T/BCM

  • EEB (12" x 14")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 x16
  • 7 MCIO (PCIe5.0 x8), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

GENOAD24QM32-2L2T/BCM

  • EEB (12" x 14")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 1 PCIe5.0 x16
  • 10 MCIO (PCIe5.0 x8), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
  • 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

GENOA2D16NQM3-2Q

  • EEB (12.8" x14")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8+8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 1 PCIe5.0 x16
  • 4 MCIO (PCIe5.0 / CXL2.0 x8), 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)*
  • 2 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s), 1 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
  • Up to 18 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

TURIN2D16-2T/ROT

  • EEB (12" x13.2")
  • Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8+8 DIMM slots (1DPC), supports DDR5 288-pin RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL2.0 x16
  • 3 PCIe4.0 x16
  • 2 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s) [CPU0]
  • Supports 1 M.2 (PCIe4.0 x4), 1 M.2 for RoT function
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • Remote Management (IPMI)

TURIN2D16-2T

  • EEB (12" x13.2")
  • Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8+8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL2.0 x16
  • 3 PCIe4.0 x16
  • 2 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s), 1 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 1 M.2 (PCIe4.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • Remote Management (IPMI)

TURIN2D24TM3-2L+

  • TDP up to 500W
  • Proprietary T-shape (18.8607" x17.0149")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 Gen-Z HP+8C (2 PCIe5.0 x16 / 2 CXL2.0 x16), 1 Gen-Z 4C+ (PCIe5.0 / CXL2.0 x16)
  • 4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4)
  • Up to 32 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

GENOA2D24TM3-2L+

  • Proprietary T-shape (18.8607" x17.0149")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 Gen-Z HP+8C (2 PCIe5.0 x16 / 2 CXL2.0 x16), 1 Gen-Z 4C+ (PCIe5.0 / CXL2.0 x16)
  • 4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4)
  • Up to 32 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

TURIN2D24G-2L+

  • TDP up to 500W
  • Proprietary (16.93"x 13.78")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 MCIO (PCIe5.0 / CXL2.0 x8), 4 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s)
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)*, 2 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Up to 34 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

GENOA2D24G-2L+

  • Proprietary (16.93" x13.78")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 MCIO (PCIe5.0 / CXL2.0 x8), 4 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Up to 34 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

TURIN2D48G-2L+

  • TDP up to 500W
  • Proprietary (18"x 16.9")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 24+24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 MCIO (PCIe5.0 / CXL2.0 x8), 4 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s)
  • 2 MCIO (PCIe5.0 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
  • 1 SlimSAS (PCIe3.0 x2)
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Up to 34 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

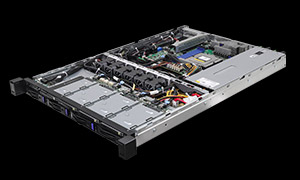

1U4L4E-GENOA/2T

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 4 hot-swap 3.5" SATA drive bays
  • 1 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)

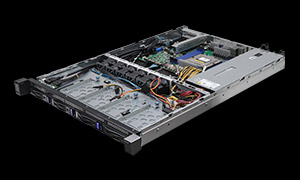

1U4L-GENOA/2T

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 3.5" SATA drive bays
  • 4 fixed 2.5" SATA drive bays
  • 1 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)

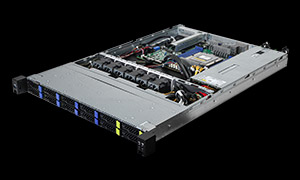

1U8S4E-GENOA/2T

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 8 hot-swap 2.5" SATA drive bays
  • 1 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)

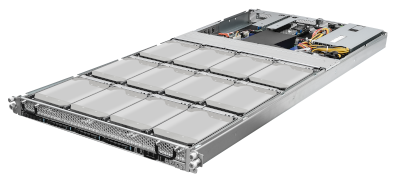

1U12L4E-GENOA/2Q

  • 1U Rackmount with 1+1, 1000W Slim RPSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 Hot-swap 3.5" SATA drive bays
  • 4 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
  • 1 FHHL PCIe5.0 x16, 1 HHHL PCIe5.0 x16
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s)
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • Remote management (IPMI)

1U12E-GENOA/EVAC

  • 1U Rackmount with 1+1, 1600W Slim RPSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4 or 4 SATA 6Gb/s)
  • 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
  • Remote management (IPMI)

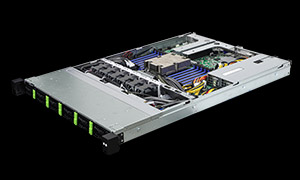

1U12E-GENOA/2L2T

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1000W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)

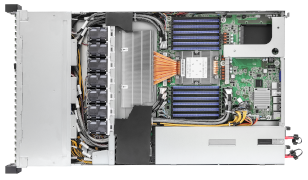

1U24E1S-GENOA/2L2T

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1600W Slim RPSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 24 Hot-swap E1.S (PCIe5.0 x4) drive bays
  • 1 FHHL PCIe5.0 x16
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)

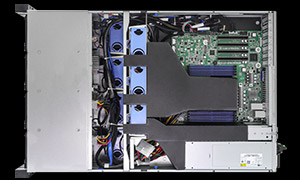

4U36L6E-GENOA/2T

  • 4U Rackmount with 1+1, 80-PLUS Platinum, 1200W CRPS
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Up to 36 Hot-swap 3.5" SATA/SAS drive bays*
  • Up to 6 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays
  • 4 HHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote management (IPMI)

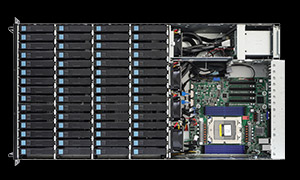

4U60L8E-GENOA/2T

  • 4U Rackmount with 2+2, 80-PLUS Platinum, 800W CRPS
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Up to 60 Hot-swap 3.5" SATA/SAS drive bays
  • 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 4 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote management (IPMI)

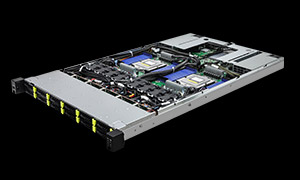

1U12E-GENOA2/EVAC

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology)
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe3.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

1U12E-GENOA2

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe3.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

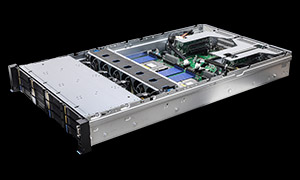

2U12L8E-GENOA2

  • 2U Rackmount with 1+1, 80-PLUS Platinum, 2000W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 8 hot-swap 3.5"/2.5" NVMe (PCIe4.0 x4)/SATA drive bays
  • 4 hot-swap 3.5"/2.5" SATA drive bays
  • 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays
  • 2 FHHL PCIe5.0 x16 or 1 FHHL PCIe5.0 x16, 2 FHHL PCIe5.0 x8
  • 2 FHHL PCIe5.0 x16 or 1 FHHL PCIe5.0 x16, 2 FHHL PCIe5.0 x8
  • 1 HHHL PCIe5.0 x16 or 2 HHHL PCIe5.0 x8
  • Supports 2 M.2 (PCIe3.0 x4)
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

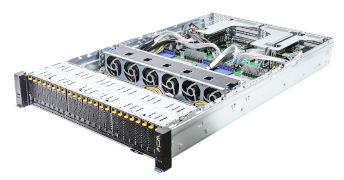

2U24E-GENOA2

  • 2U Rackmount with 1+1, 80-PLUS Titanium, 2600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 24 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays
  • 1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8
  • 1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8
  • 1 HHHL PCIe5.0 x8
  • Supports 2 M.2 (PCIe3.0 x4)
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

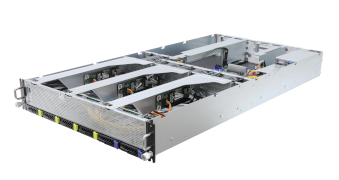

2U4G-GENOA/M3

2U4G-GENOA/M3

  • 2U Rackmount with 1+1, 80-PLUS Platinum, 2700W CRPS
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 dual-slot PCIe5.0 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8
  • 4 x 2.5" NVMe drive bay, 2 x 2.5" SATA drive bays
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)
4U4G-GENOAX

4U4G-GENOAX

  • 4U Rackmount with 1+1, 80-PLUS Platinum, 2100W CRPS
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 FHFL dual-slot PCIe5.0 x16 or 7 FHFL single-slot PCIe5.0 x16
  • 1 FHFL PCIe5.0 x8
  • 1 M.2 (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • Remote management (IPMI)
4U10G-GENOA2

4U10G-GENOA2

  • 4U Rackmount with 3+1, 80-PLUS Platinum, 2000W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 16 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays or 24 Hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
  • 10 FHFL dual-slot PCIe5.0 x16 + 2 FHFL single-slot PCIe5.0 x8 shared space with adjacent dual-slot (with PEX89104 PCIe Switch)
  • 1 FHFL single-slot PCIe5.0 x16 (CPU direct link), 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • 1 OCP NIC 3.0 (PCIe5.0 x16), 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

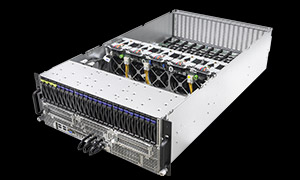

4U8G-GENOA2

  • 4U Rackmount with 3+1, 80-PLUS Platinum, 1600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 20 Hot-swap 2.5” SATA drive bays
  • 8 FHFL dual-slot PCIe5.0 x16, 1 FHHL PCIe5.0 x8
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • 1 OCP NIC 3.0 (PCIe5.0 x8)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

6U8M-TURIN2 MI300X

  • 6U Rackmount with 4+4, 80-PLUS Titanium, 3000W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Supports AMD Instinct™ MI300X platform with Infinity Fabric™ Links
  • 8 HHHL PCIe5.0 x16, 3 FHHL PCIe5.0 x16
  • 12 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • 2 RJ45 (1GbE) by Intel® i350-AM2
  • Remote management (IPMI)

6U8M-TURIN2 MI325X

  • 6U Rackmount with 4+4, 80-PLUS Titanium, 3000W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Supports AMD Instinct™ MI325X platform with Infinity Fabric™ Links
  • 8 HHHL PCIe5.0 x16, 3 FHHL PCIe5.0 x16
  • 12 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • 2 RJ45 (1GbE) by Intel® i350-AM2
  • Remote management (IPMI)

CONNECT WITH US

SIGN UP TO RECEIVE THE LATEST NEWS AND SERVER CONTENT

Subscribe

* indicates required

By checking the box, you consent to receive our e-newsletter and agree to our Privacy Policy. You can unsubscribe at any time by clicking the link in the footer of our emails.

We use Mailchimp as our marketing platform. By clicking below to subscribe, you acknowledge that your information will be transferred to Mailchimp for processing. Learn more about Mailchimp's privacy practices.

CONTACT US

Follow us on Social
