Optimize your Business Operation with Reliable and Economical Server Solutions

Powered By AMD EPYC™ 4005 Series Processors

AMD EPYC™ 4005 Server Solutions Offer a Compelling Balance of Performance for Small and Medium Business

ASRock Rack provides multiple server-grade platforms
supporting AMD EPYC™ 4005 CPUs

AMD EPYC™ 4005 Processors extend the broad AMD EPYC processor family, powering a new line of entry level systems designed for small business customers and hosted IT services providers that seek performance and the latest technologies, but also demand energy efficiency, dependability and affordability. ASRock Rack is one of the earliest partners to provide motherboards for AMD EPYC™ 4005 server systems.

WHAT ARE AMD EPYC™ 4005 CPUs?

Based on the high performance, highly efficient ‘Zen 5’ processor core, the AMD EPYC 4005 range of six single-CPU models includes processor core counts from 6 to 16 cores and includes a model that features integrated AMD 3D V-Cache™ technology. The AMD EPYC 4005 family offers options with TDP ranges from 65W to 170W, and includes a model with an impressive 16 cores at a low 65W TDP. With 2 channels of fast DDR5 memory (up to 192GB capacity), 28 lanes of processor-based PCIe® Gen 5 expandability and software RAID support, these processors provide an expansive, innovation-laden platform supporting a broad set of everyday and all-day business processing needs.

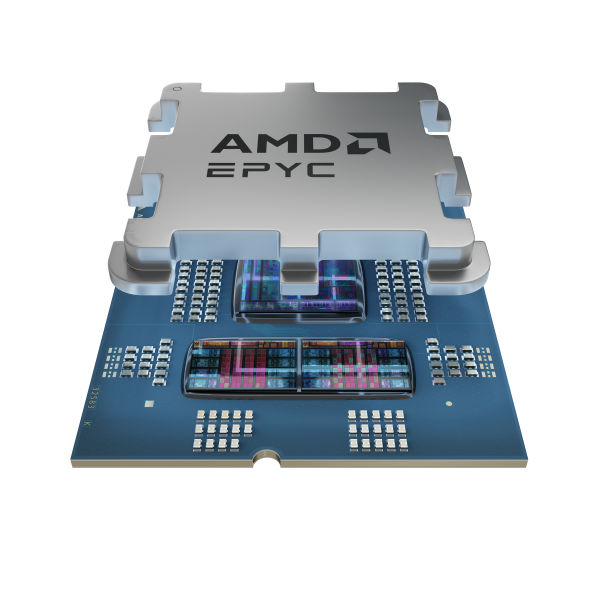

AMD_EPYC_4005_chipshot
FIND THE SERVER HARDWARE

A TRUSTED CHOICE FOR SMALL BUSINESSES AND HOSTED SERVICES EMBRACING THE AI ERA

WITH AMD EPYC™ 4005 SERIES PROCESSORS

Systems based on the AMD EPYC 4005 are right sized for the requirements of the markets: eliminating the unnecessary features of a gaming or consumer system, and without the massive scalability of corporate or hyperscale data center systems. The standards-based platform manageability, essential security capabilities and energy efficiency of EPYC 4005 based systems are designed to enable lower operating costs for the typical “business hours” usage scenarios as well as the round-the-clock needs of the hosted service providers.

SEE THE LATEST ASROCK RACK SERVERS AND MOTHERBOARDS SUPPORTING AMD EPYC™ 4005 SERIES PROCESSORS

Enhancing Data Center Performance and Efficiency with AMD EPYC™ 4005 and ASRock Rack Motherboards

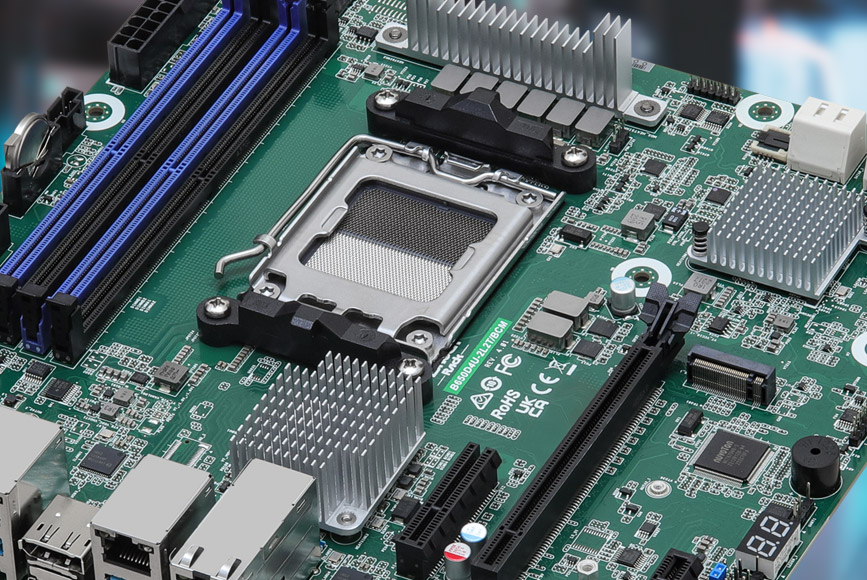

B650D4U-2L2T/BCM
B650D4U-2L2T/BCM
  • Micro-ATX (9.6"x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
B650D4U-2T/BCM
B650D4U-2T/BCM
  • Micro-ATX (9.6"x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
B650D4U
B650D4U
  • Micro-ATX (9.6"x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
B650D4U3-2L2Q/BCM
B650D4U3-2L2Q/BCM
  • Micro-ATX (9.6" x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 PCIe4.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 4 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57502
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI
  • Remote management (IPMI)
B650D4U3-2Q/BCM
B650D4U3-2Q/BCM
  • Micro-ATX (9.6" x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 PCIe4.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 4 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57502
  • 1 HDMI
  • Remote management (IPMI)
B650D4U3
B650D4U3
  • Micro-ATX (9.6" x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 PCIe4.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 4 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI
  • Remote management (IPMI)
AM5D4ID-2T/BCM
AM5D4ID-2T/BCM
  • Deep mini-ITX (6.7"x 8.2")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 OCuLink (PCIe4.0 x2)
  • Supports 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 1 HDMI
  • Remote management (IPMI)
AM5D4ID-2L+/BCM
AM5D4ID-2L+/BCM
  • Deep mini-ITX (6.7"x 8.2")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 OCuLink (PCIe4.0 x2)
  • Supports 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Broadcom BCM5720L
  • 1 HDMI
  • Remote management (IPMI)
AM5D4ID2
AM5D4ID2
  • Deep mini-ITX (6.7" x 8.2")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI
  • Remote management (IPMI)
AM5D4ID3-2T/X710
AM5D4ID3-2T/X710
  • Deep mini-ITX (6.7"x 8.2")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 OCuLink (PCIe4.0 x2)
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X710
  • 1 HDMI
  • Remote management (IPMI)
EPYC4000D4U
EPYC4000D4U
  • Support ATX PSU or 12V DC-in
  • Micro-ATX (9.6" x 9.6")
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen 9000/8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 MCIO (PCIe5.0 x8)
  • 1 MCIO (2 PCIe5.0 x4)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
2U1G-B650
2U1G-B650
  • 2U Rackmount with 1+1, 80-PLUS Platinum, 1200W CRPS
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 2 optional fixed 2.5" drive bays
  • 1 FHFL triple-slot PCIe5.0 x16
  • 1 FHHL PCIe4.0 x4
  • Supports® 2 M.2 slots
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)

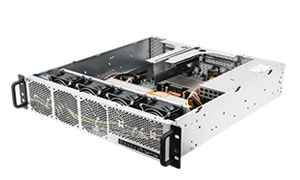

2U1G-B650/EVAC
2U1G-B650/EVAC
  • 2U Rackmount with 1+1, 80-PLUS Platinum, 1200W CRPS
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 optional fixed 2.5" drive bay
  • 1 FHFL dual-slot PCIe5.0 x16
  • 1 FHHL PCIe4.0 x4
  • Supports® 2 M.2 slots
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)
2U1G-B650/AQUA
2U1G-B650/AQUA
  • 2U Rackmount with 1+1, 80-PLUS Platinum, 1200W CRPS
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 2 optional fixed 2.5" drive bays
  • 1 FHFL triple-slot PCIe5.0 x16
  • 1 FHHL PCIe4.0 x4
  • Supports® 2 M.2 slots
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote management (IPMI)

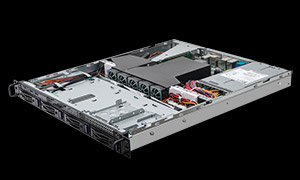

1U4LW-B650/2L2T RPSU
1U4LW-B650/2L2T RPSU
  • 1U Rackmount with 450W Redundant PSU (1+1)
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 4 hot-swap 3.5" SATA drive bays
  • 1 FH PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

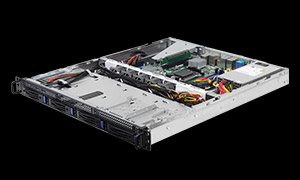

1U4LW-B650/2L2T
1U4LW-B650/2L2T
  • 1U Rackmount with 1, 80-PLUS Gold, 400W PSU
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 4 hot-swap 3.5" SATA drive bays
  • 1 FH PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

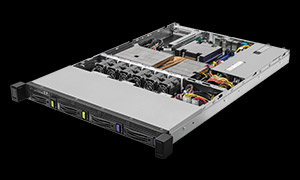

1U4L2E-B650 RPSU
1U4L2E-B650 RPSU
  • 1U Rackmount with 1+1, 80-PLUS Platinum, 650W Slim PSU
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 2 Hot-swap 3.5" SATA or 2 x 2.5" NVMe (PCIe4.0 x4) drive bays
  • 2 Hot-swap 3.5" SATA drive bays
  • 1 FHHL PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

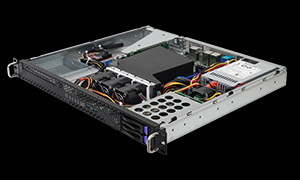

1U2S-B650
1U2S-B650
  • 1U Rackmount with 1, 80-PLUS Gold, 315W PSU
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 2 hot-swap 2.5" SATA drive bays
  • 1 fixed 3.5" SATA drive bay or 1 Slim ODD
  • 1 FHHL PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)
1U2N2G-AM5/2T
1U2N2G-AM5/2T
  • 1U chassis with 2 nodes, 1+1 80-PLUS Platinum, 1600W CRPS
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 FH dual-slot PCIe5.0 x16 per node
  • Supports 1 M.2 (PCIe4.0 x4) per node
  • 2 RJ45 (10GbE) by Broadcom BCM57416 per node
  • Remote management (IPMI)

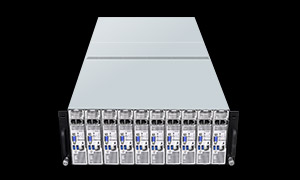

4U18N-AM5/2T
4U18N-AM5/2T
  • 4U chassis with 18 nodes support 36 x 2.5'' NVMe SSD, 2000W Redundant (2+2) PSU
  • Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors (65W)
  • 4 DDR5 ECC/ non-ECC UDIMM, up to 48GB each
  • Supports 2 x 2.5" NVMe SSD per node
  • Supports 1 M.2 per node
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 2x RJ45 (10GbE) by Broadcom BCM57416)
