5^th Gen Intel^® Xeon^® Scalable Processors

Get impressive performance per watt gains across all your workloads, plus outsized performance and TCO in AI, database, networking, and HPC. 5th Gen Intel^® Xeon^® Scalable processors deliver more compute and faster memory at the same power envelope as the previous generation. It’s software- and platform-compatible with the previous generation, so you can minimize testing and validation when deploying new systems.

• Grow and excel with workload-optimized performance
• Create new business models with the best CPUs for AI
• Lower costs and your carbon footprint with energy-efficient compute
• Maximize uptime and future-proof your IT with silicon-based security features and quality solutions that scale

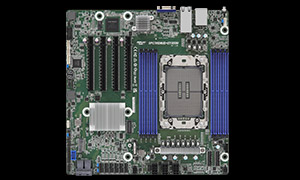

SPC741D8UD-2T/X550

• Deep Micro-ATX (10.4" x 10.5")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 PCIe5.0 / CXL1.1 x16
• 2 MCIO (PCIe5.0 x8)
• Support 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 9 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote management (IPMI)

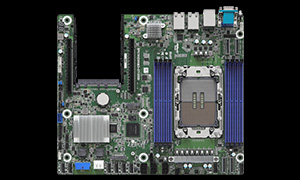

SPC741D8QM3-2T/X550

• CEB (12'' x 10.5'')
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 1 PCIe5.0 / CXL1.1 x16
• 1 PCIe4.0 x16
• 4 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 8 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote management (IPMI)

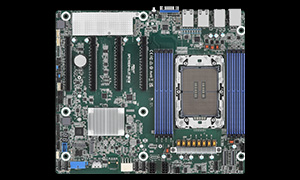

SPC741D8-2L2T/BCM

• CEB (12'' x 10.5'')
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 PCIe5.0 / CXL1.1 x16
• 11 MCIO (PCIe3.0 x4 or 4 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
• 2 MCIO (PCIe5.0 x8)
• Supports 2 M.2 slots (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 14 SATA 6Gb/s
• 2 RJ45 (10GbE) by Broadcom -BCM57416
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

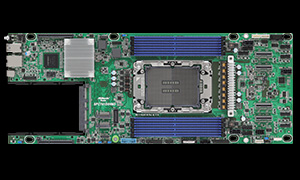

SPC741D8HM3

• Half-width (6.6" x 17")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC)), supports DDR5 RDIMM/ RDIMM-3DS
• 2 Slim Cool Edge (PCIe5.0 / CXL1.1 x16)
• 4 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
• 1 OCuLink (PCIe3.0 x2 or 2 SATA 6Gb/s)
• Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 8 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote management (IPMI)

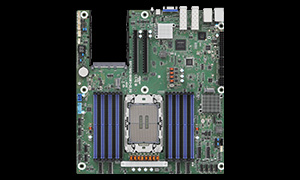

SPC741D16QM3-2L2Q

• EEB (12" x 13.4")
• Supports 5^th & 4^th Intel® Xeon® Scalable Processors
• 16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 1 PCIe5.0/ CXL1.1 x16, 1 PCIe5.0 x8
• 4 MCIO (PCIe5.0 x8)
• 1 MCIO (PCIe3 x8 or SATA 6Gb/s), 1 MCIO (PCIe3 x4 or SATA 6Gb/s)
• Supports 2 M.2
• Up to 14 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 SFP28 (25GbE) by Broadcom BCM57414
• 2 RJ45 (1GbE) by Intel® I350
• Remote management (IPMI)

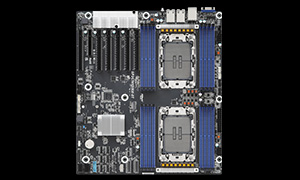

SP2C741D16X-2T

• EEB (12.4" x 14")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 6 PCIe5.0 / CXL1.1 x16
• 1 PCIe5.0 x8
• 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
• Support 1 M.2 (PCIe5.0 x4)
• Up to 13 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X710-AT2
• Remote management (IPMI)

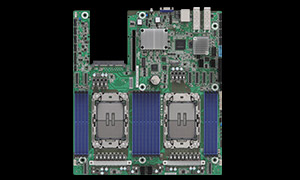

SP2C741D16NQM3-2Q

• EEB (12.8" x 14")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 1 PCIe5.0 / CXL1.1 x16
• 8 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• Support 1 M.2 (PCIe5.0 x4)
• Up to 4 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 SFP28 (25GbE) by Broadcom BCM57414
• Remote management (IPMI)

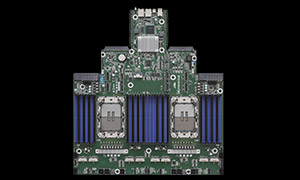

SP2C741D32TM3

• Proprietary (18.87" x 16.85")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 2 Gen Z 4C (PCIe5.0 / CXL1.1 x16)
• 12 MCIO (PCIe5.0 x8)
• Supports 2 M.2 (PCIe4.0 x4)
• Up to 8 SATA 6Gb/s
• 2 OCP NIC 3.0 (PCIe5.0 x16)
• Remote management (IPMI)

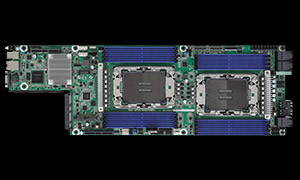

SP2C741D16HM3

• Half-width (6.7" x 21")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 2 Gen Z 4C (PCIe5.0 / CXL1.1 x16)
• 2 ExaMAX (PCIe5.0 x16)
• 2 MCIO (PCIe5.0 x8)
• Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
• Up to 10 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote management (IPMI)

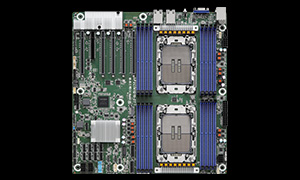

SP2C741D16-2T

• EEB (12.12'' x 13.3")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 6 PCIe5.0 / CXL1.1 x16
• 1 PCIe5.0 x8
• 2 MCIO (PCIE5.0 x8)
• 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
• Supports 1 M.2 (PCIe5.0 x4)
• Up to 13 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel X710-AT2
• Remote management (IPMI)

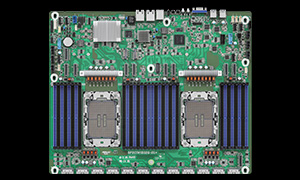

SP2C741D32G-2L+

• Proprietary (16.93" x 13.79")
• Supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 20 MCIO (PCIe5.0 x8)
• 1 MCIO (PCIe4.0 x8)
• 1 MCIO (PCIe3.0 x8 or SATA 6Gb/s)
• Supports 2 M.2
• Up to 9 SATA 6Gb/s
• Remote management (IPMI)

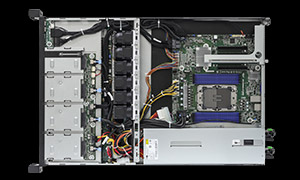

1U4L4E-EGS/2T

• 1U Rackmount with 1+1 Platinum 750W Slim PSU
• Single Socket E (LGA 4677), supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS* drive bays, 4 Hot-swap 3.5" SATA drive bays
• 1 FHHL PCIe5.0 x16
• Support 1 M.2 (PCIe3.0 x4)
• 2 RJ45 (10GbE) by Intel® X550
• Remote management (IPMI)

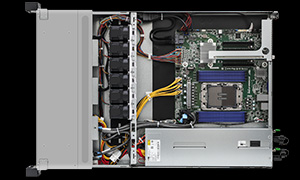

1U8S4E-EGS/2T

• 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
• Single Socket E (LGA 4677), supports 5^th & 4^th Gen Intel® Xeon® Scalable processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
• 8 Hot-swap 2.5" SATA drive bays
• 1 FHHL PCIe5.0 x16
• Supports 1 M.2 (PCIe3.0 x4)
• 2 RJ45 (10GbE) by Intel X550-AT2
• Remote Management (IPMI)

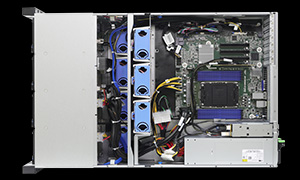

4U36L6E-EGS/2T

• 4U Rackmount with 1+1 Platinum 1200W CRPS
• Single Socket E (LGA 4677), supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots, support DDR5 RDIMM/ RDIMM-3DS
• 36 Hot-swap 3.5" drive bays and 4 of those can also support 2.5" NVMe drives
• 2 Hot-swap 2.5'' NVMe drive bays
• 3 HHHL PCIe5.0 / CXL1.1 x16
• Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote management (IPMI)

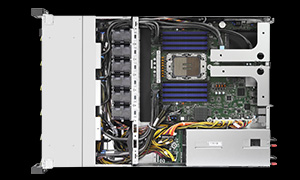

1U12E-EGS/2L2Q

• 1U Rackmount with 1+1, 80-PLUS Platinum, 1000W Slim PSU
• Single Socket E (LGA 4677), supports 5th & 4th Gen Intel® Xeon® Scalable processors
• 16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 12 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS drive bays
• 1 FHHL PCIe5.0 x8
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Supports 2 M.2
• 2 SFP28 (25GbE) by Broadcom BCM57414
• 2 RJ45 (1GbE) by Intel® I350
• Remote management (IPMI)

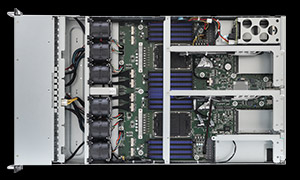

2U4G8E-EGS2

• 2U Rackmount with 1+1 2700W CRPS
• Dual Socket E (LGA 4677), supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Optane™ Persistent Memory 300 Series
• 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 2 Hot-swap 2.5" SATA drive bays
• 4 FHFL single-slot PCIE5.0 x16 or 2 FHFL dual-slot PCIE5.0 x16
• 2 OCP NIC 3.0 (PCIe 5.0 x16)
• Supports 2 M.2 (PCIe4.0 x4)
• Remote management (IPMI)

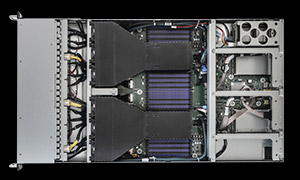

2U24E-EGS2

• 2U Rackmount with 1+1 2700W CRPS
• Dual Socket E (LGA 4677), supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Optane™ Persistent Memory 300 Series
• 24 Hot-swap 2.5" NVMe drive bays, 2 Hot-swap 2.5" SATA drive bays
• 2 FHHL PCIe 5.0 x16
• 2 OCP NIC 3.0 (PCIe 5.0 x16)
• Supports 2 M.2 (PCIe4.0 x4)
• Remote management (IPMI)

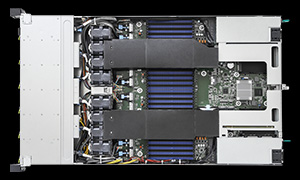

1U12E-EGS2

• 1U Rackmount with 1+1 2100W CRPS
• Dual Socket E (LGA 4677), supports 5^th & 4^th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Optane™ Persistent Memory 300 Series
• 12 Hot-swap 2.5" NVMe drive bays
• 2 FHHL PCIe 5.0 x16
• 2 OCP NIC 3.0 (PCIe 5.0 x16)
• Supports 2 M.2 (PCIe4.0 x4)
• Remote management (IPMI)

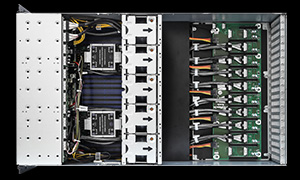

4U8G-EGS2

• 4U Rackmount with 3+1, 80-PLUS Platinum, 1600W CRPS
• Dual Socket E (LGA 4677), supports 5th & 4th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
• 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 8 hot-swap 2.5" SATA drive bays
• Up to 12 hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
• 8 FHFL dual-slot PCIe5.0 x16 (CPU direct link)
• 1 FHHL PCIe5.0 x16
• 1 FHHL PCIe4.0 x8
• Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• 2 RJ45 (1GbE) by Intel® i350
• Remote Management (IPMI)

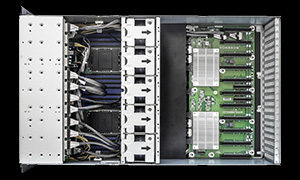

4U10G-EGS2

• 4U Rackmount with 3+1, 80-PLUS Platinum, 2000W CRPS
• Dual Socket E (LGA 4677), supports 5th & 4th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
• 16 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 2 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays, 8 hot-swap 2.5" SATA drive bays (2 shard with 2.5" NVMe)
• Up to 16 hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
• 10 FHFL dual-slot PCIe5.0 x16 + 2 FHFL single-slot PCIe5.0 x8 shared space with adjacent dual-slot (with PEX89104 PCIe Switch)
• 1 FHFL single-slot PCIe5.0 x16 (CPU direct link)
• 2 FHHL PCIe5.0 x16
• Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 RJ45 (1GbE) by Intel® i350
• Remote Management (IPMI)
