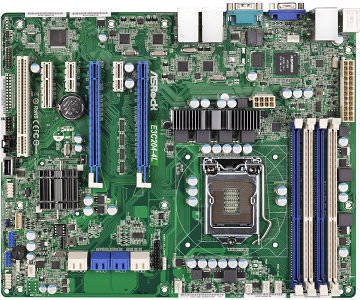

E3C204-4L

  1. 100% All Solid Capacitor design
  2. Single Socket H2(LGA1155), supports Intel® Xeon® E3-1200 & v2 Series and 2nd / 3rd Generation Core™ i3, Pentium, Celeron® Processors
  3. Supports Dual Channel DDR3 1600 memory, 4 DIMM slots, Max. 32GB
  4. 2 PCIe 3.0 x16, 1 PCIe 2.0 x4, 2 PCIe 2.0 x1, 1 PCI
  5. ASPEED AST2300 graphics, 1 VGA : D-Sub
  6. 2 SATA3 6.0 Gb/s and 4 SATA2 3.0 Gb/s connectors by Intel® C204, support RAID (RAID 0, RAID 1, RAID 10 and Intel® Rapid Storage)
  7. 2 SATA3 6.0 Gb/s connectors by Marvell SE9172, support RAID (RAID 0 and RAID 1)
  8. 1 Realtek RTL8211E for dedicated IPMI management GLAN
  9. 4 Intel® 82574L LAN, Support PCIE Quad Gigabit LAN (with Teaming function)
