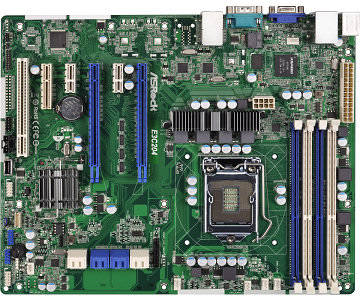

E3C204

1. 100% All Solid Capacitor design
2. Single Socket H2(LGA1155), supports Intel^® Xeon^® E3-1200 & v2 Series and 2^nd / 3^rd Generation Core™ i3, Pentium, Celeron^® Processors
3. Supports Dual Channel DDR3 1600 memory, 4 DIMM slots, Max. 32GB
4. 2 PCIe 3.0 x16, 1 PCIe 2.0 x4, 2 PCIe 2.0 x1, 1 PCI
5. ASPEED AST2300 graphics, 1 VGA : D-Sub
6. 2 SATA3 6.0 Gb/s and 4 SATA2 3.0 Gb/s connectors by Intel^® C204, support RAID (RAID 0, RAID 1, RAID 10 and Intel^® Rapid Storage)
7. 2 SATA3 6.0 Gb/s connectors by Marvell SE9172, support RAID (RAID 0 and RAID 1)
8. 1 Realtek RTL8211E for dedicated IPMI management GLAN
9. 2 Intel^® 82574L LAN, Support PCIE Dual Gigabit LAN (with Teaming function)
