1U12LW-C2750

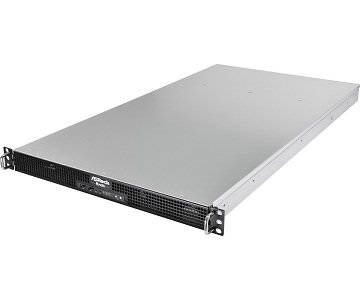

1. 1U Chassis support 12x3.5’’/2.5’’ SATA3/SAS2 HDD Hot-Swap Bay with 250W single PSU
2. Intel Avoton C2750 Octa-Core Processor
3. DDR3 1600/1333 Dual-channel Max. 64GB UDIMM
4. 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
5. 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172
6. Dual Intel i210 Gigabit LAN ports (with Teaming function)
7. 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
8. 1 x PCI-E x8 slot
