FM6256-BNF

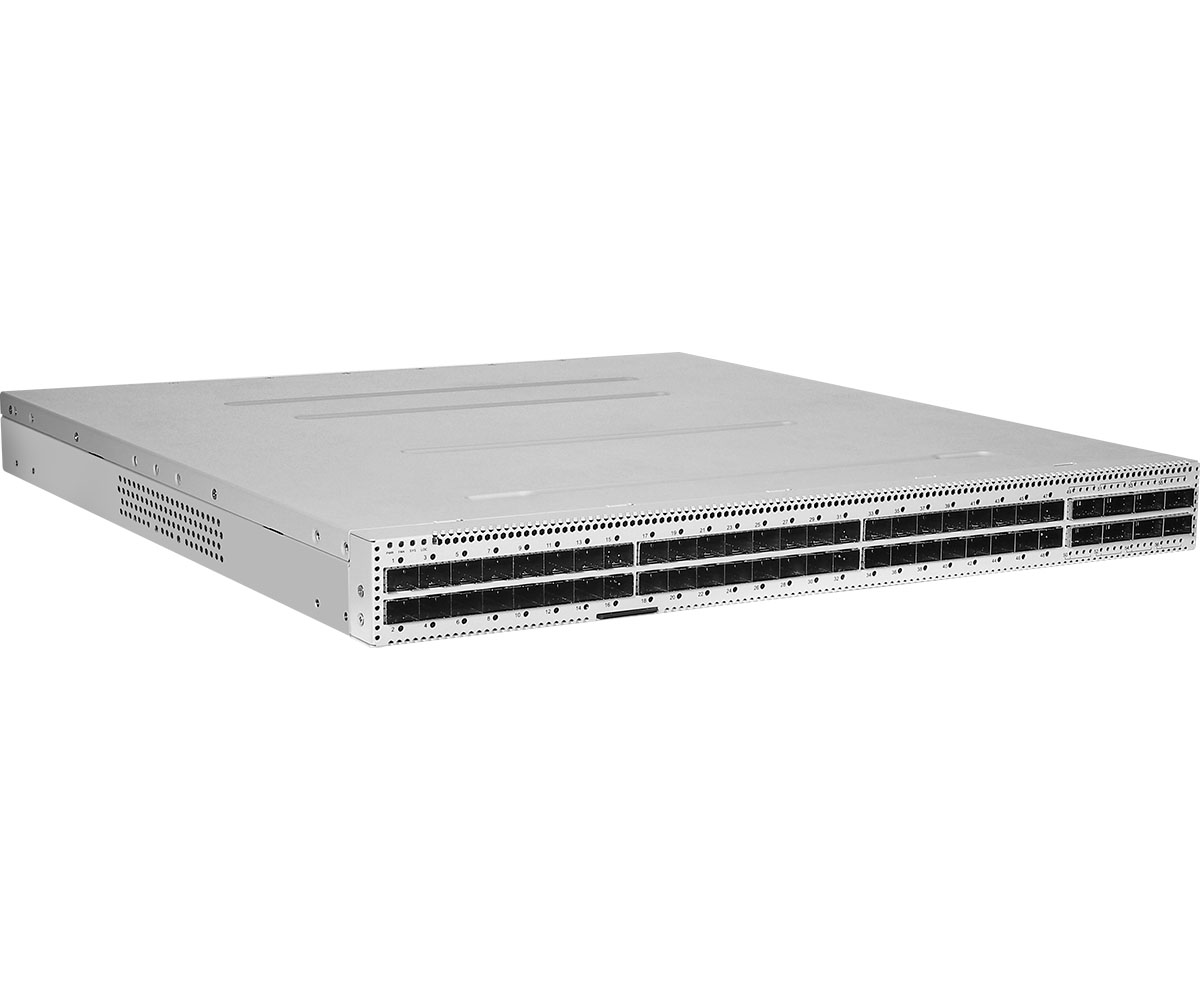

  1. 1RU 2Tbps Top-of-Rack Data Center Switch
  2. 48 x SFP28 + 8 x QSFP28 ports
  3. Marvell Falcon 98CX8512 switch ASIC
  4. Intel Broadwell-DE D1517 CPU
  5. ONIE pre-loaded
  6. BMC optional

Specifications

 Physical Ports
I/O Ports- 48 x SFP28 supporting 10/25GbE
- 8 x QSFP28 supporting 40/100GbE, or 4x10/4x25/2x50GbE with breakout cables
Management- 1 x RJ45 10/100/1000BASE-T
Console- 1 x RJ45 RS232
USB- 1 x USB 2.0 Type A
 Switch ASIC
- Marvell Falcon 98CX8512
 Processor
CPU- Intel® Broadwell-DE® D-1517
Memory- Default 8GB DDR4
- Max 32GB DDR4
Storage- 16GB eMMC NAND FLASH
- SSD module optional
 BMC
- AST2520 optional
 Performance and Scalability
Switching Capacity- 2T bps
Forwarding Rate- 2.8 Bpps
Jumbo frames- Yes
Packet Buffer Size- 24 MB
Transmit Descriptors- 192K
Bridge FDB Entries- Up to 256K
Router IPv4 Host Entries- Up to 256K
Router IPv6 Host Entries- Up to 128K
Router LPM- IPv4 - up to 512K unicast prefixes
- IPv6 - up to 256K unicast 64-bit prefixes
TCAM Resources
(Shared between TTI, IPCL and EPCL Classification Engines)
- 36K x 10B rules (18K x 10B per dual control pipe)
Virtual Ports (ePorts)- 8K
Bridge Domains (eVLANs)- Up to 8K
Multicast Physical Port Groups (VIDX)- Up to 4K
Multicast Virtual Port Groups (eVIDX)- 16K
Multicast Linked List (MLL) Entries- 16K
Tunnel-Start/ARP Table- Up to 192K ARP entries
- Up to 48K Non-IPv6 Tunnel-Start entries
- Up to 24K IPv6 Tunnel-Start entries
Router Next Hop Entries- 24K
Router ECMP Groups- 12K
ePort ECMP Groups- 16K
Trunk ECMP Groups- Up to 4K
L2 ECMP Table
(Shared by ePort ECMP group and Trunk ECMP groups)
- 16K ECMP members
- Each ECMP group may contain up to 4K EMCP members
Hardware OAM Flows- 16K ECMP members
- 4K OAM flows (1K OAM flows per control pipe)
Spanning Tree Groups- Up to 4K
 Power and Cooling
Power Supply- Hot-swappable 2 PSU, input range 100-240VAC, 650W, 1+1 redundancy
Power Consumption- 520W max
Fan Tray- Hot-swappable 5 fans, 4+1 redundancy
 Mechanical
Dimension- 440 x 470 x 44 mm (WxDxH)
Weight- 9.7 kg
 Environmental
Operating Temperature- 0°C to 40°C
Operating Humidity- 5% to 95% relative humidity noncondensing
Operating Altitude- 3000m max
Storage Temperature- - 40°C to 70°C
Storage Humidity- 5% to 95% relative humidity noncondensing
 Regulatory Standards Compliance
Safety- UL, cUL, CB, CCC
EMC- FCC, CE, CCC
Available upon Request- VCCI

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
