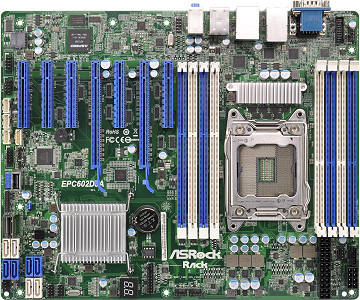

EPC602D8A

  1. Supports Single Intel® LGA 2011, Supports Intel® Xeon® Processor E5-1600/2600/4600 & v2 Series
  2. 8 x DIMM DDR3 1866/1600/1333/1066 LR / Registered /ECC/ UDIMM, max. 256GB
  3. Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s(4 ports from mini SAS port)
  4. Marvell SE9172: 2 x SATA3 6.0 Gb/s
  5. 2 PCIe3.0 x16, 3 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe2.0 x2
  6. Intel® i210 support Dual GLAN with teaming function
  7. ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
  8. Support Audio 3 Jack, ALC892
