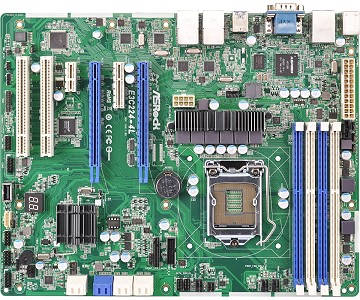

E3C224-4L

1. ATX 12" x 9.6"
2. Single socket H3 (LGA 1150)
3. Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
4. 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
5. 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1, 2 x PCI
6. 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
7. 2 x SATA3 by Marvell 9172 support RAID 0,1
8. 4 x Intel i210, support Quad GLAN
9. ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
10. 4 x USB 3.0 ports (2 rear + 2 via header )
11. 7 x USB 2.0 ports (2 rear + 4 via header +1 Type A)
