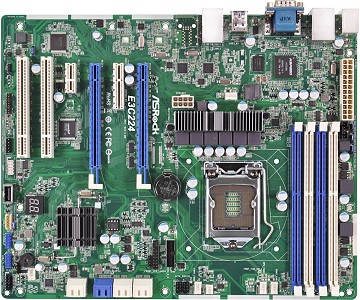

E3C224

1. ATX 12" x 9.6"
2. Single socket H3 (LGA 1150)
3. Supports New 4th and 5th Generation Intel^® XeonE3-1200 v3/v4/ Core™ i3/Pentium^®/Celeron^® Processors (Socket 1150)
4. 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
5. 2 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe2.0 x1, 2 PCI
6. 4 x SATA3, 2 SATA2 by Intel^® C224 support RAID 0,1,5,10
7. 2 x SATA3 by Marvell 9172 support RAID 0,1
8. 2 x Intel^® i210, support Dual GLAN
9. ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
10. 4 x USB 3.0 ports (2 rear + 2 via header )
11. 7 x USB 2.0 ports (2 rear + 4 via header + 1 Type A)
