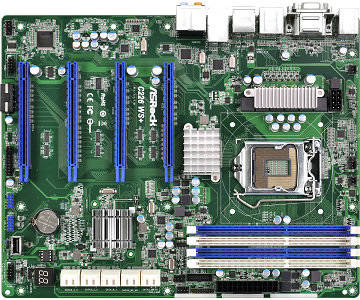

C226 WS+
- ATX 12''x9.6''
- Single socket H3 (LGA 1150)
- Supports New 4th and 5th Generation Intel® XeonE3-1200 v3/v4/ Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
- 4-DIMM DDR3 1600/1333 ECC & UDIMM, max. 32GB
- 4 x PCIe 3.0 x16
- 6 x SATA3 by Intel® C226 support RAID 0,1,5,10
- 4 x SATA3 by Marvell 9172 support RAID 0,1
- 2 Intel® i210, support Dual GLAN
- 6 USB 3.0 ports (4 rear + 2 via header)
- 7 USB 2.0 ports (2 rear + 4 via header +1 Type A)
Print
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
