1U12LX-14S

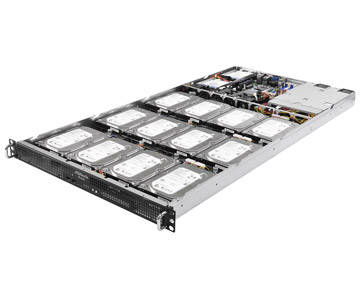

  1. 1U Chassis support 12x3.5’’/2.5’’ SATA3/SAS2 HDD Hot-Swap Bay +2 x 2.5’’ HDD Bay with 550W Redundant PSU
  2. Single socket H3 (LGA 1150) supports Intel Xeon processor E3-1200 v3/v4 series & Haswell i3, Pentium and Celeron processors
  3. 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
  4. 1 x PCIe 3.0 x8
  5. 4 x SATA3 from min SAS 8087 by Intel C224 support RAID 0,1,5,10
  6. 8 x SAS2 from 2 x mini SAS 8087 connector by LSI 2308
  7. 2 x Intel i210, support Dual GLAN
  8. ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
